MobiControl Web Console |
The MobiControlWeb Console allows you to provide Management Console access to your mobile support team using a thin management console available anywhere where Internet Explorer is installed.
The Web Console is an online Management Console providing you with the ability to support your mobile devices from anywhere in the world. You can do everything from locate your devices to remote control, and even send scripts.
The MobiControl Web Console is installed to https://localhost/MobiControl
From the MobiControl Web Console you can:
- Remote Control/View
- Send Scripts and Messages
- Locate and Track Devices
- View Logs, Device Info, Packages, Assigned Rules and Installed Programs
- Make Notes
- View Deployment Server Information
- Generate Reports
Note:
Web Remote Control uses Microsoft ActiveX Controls, if you are unable to remote control a device, please make sure this feature is not specifically denied within your Internet Explorer settings.
Device Status Icon
The MobiControl Web Console allows you to identify the different devices and their states via the device icon. The table below references the different icons and their states
| Device | Description | Icon |
|---|---|---|
| Windows CE / Windows Mobile device | Online |
|
| Offline |
|
|
| Learning |
|
|
| Windows Desktop device | Online |
|
| Offline |
|
|
| Apple iOS | Online |
|
| Offline |
|
|
| No Device Agent |
|
|
| Error - Profiles not installed |
|
|
| Google Android | Online |
|
| Offline |
|
|
| Error - No Administrator rights |
|
Logging
The web console has the ability to set logging levels and to view the log file generated.

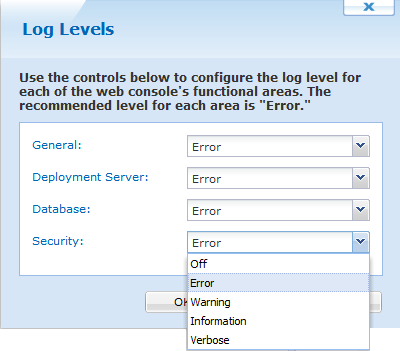

Log Levels
To set the log levels, click the question mark on the top right hand corner, and select Log Levels. The logging levels can be set for General, Deployment Server, Database and Security.
MobiControl Log Levels
| Log Level | Description |
|---|---|
| Off | Setting the log level to Off turns off any logging for the associated section. |
| Error | Setting the log level to Error allows only error messages to be written to the log file |
| Warning | Setting the log level to Warning allows only warning messages to be written to the log file |
| Information | Setting the log level to Information allows only information messages to be written to the log file |
| Verbose | The Verbose setting enables Error, Warning and Information to be written to the log file at the same time. |
View Log File
To view the log file in the Web Console, click the question mark on the top right hand corner, and select View Log Levels.

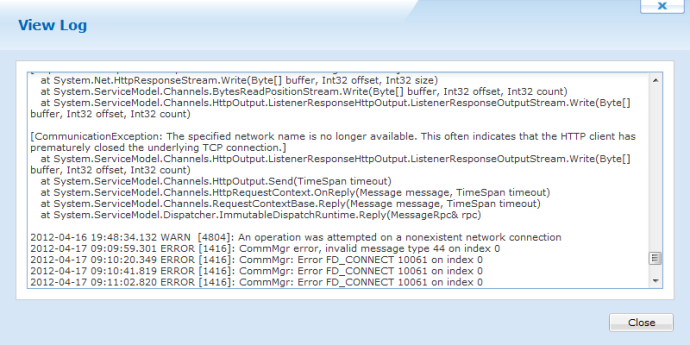

MobiControl log file
